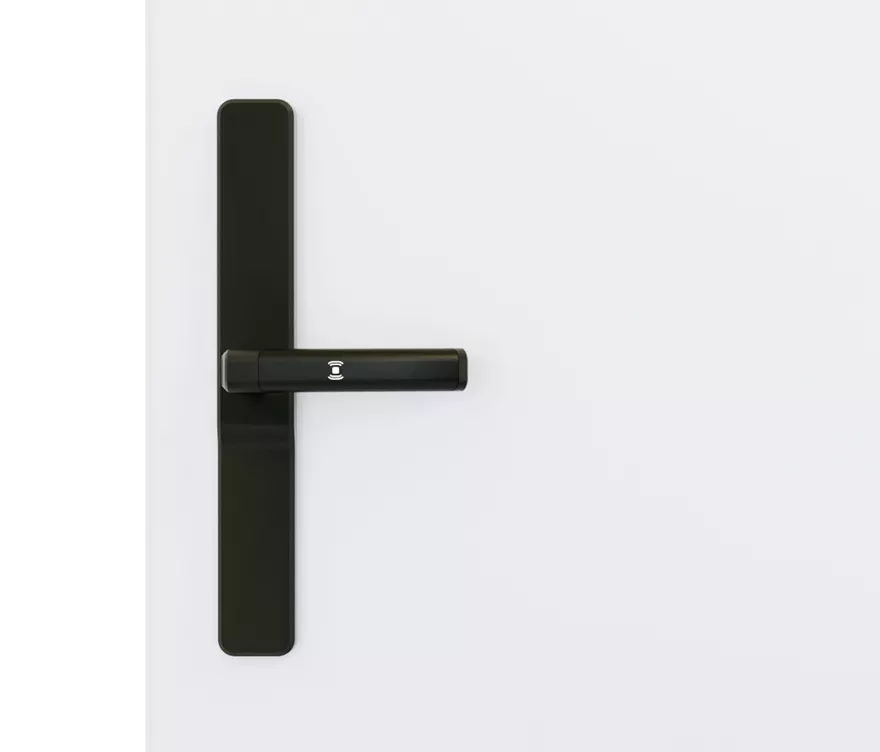

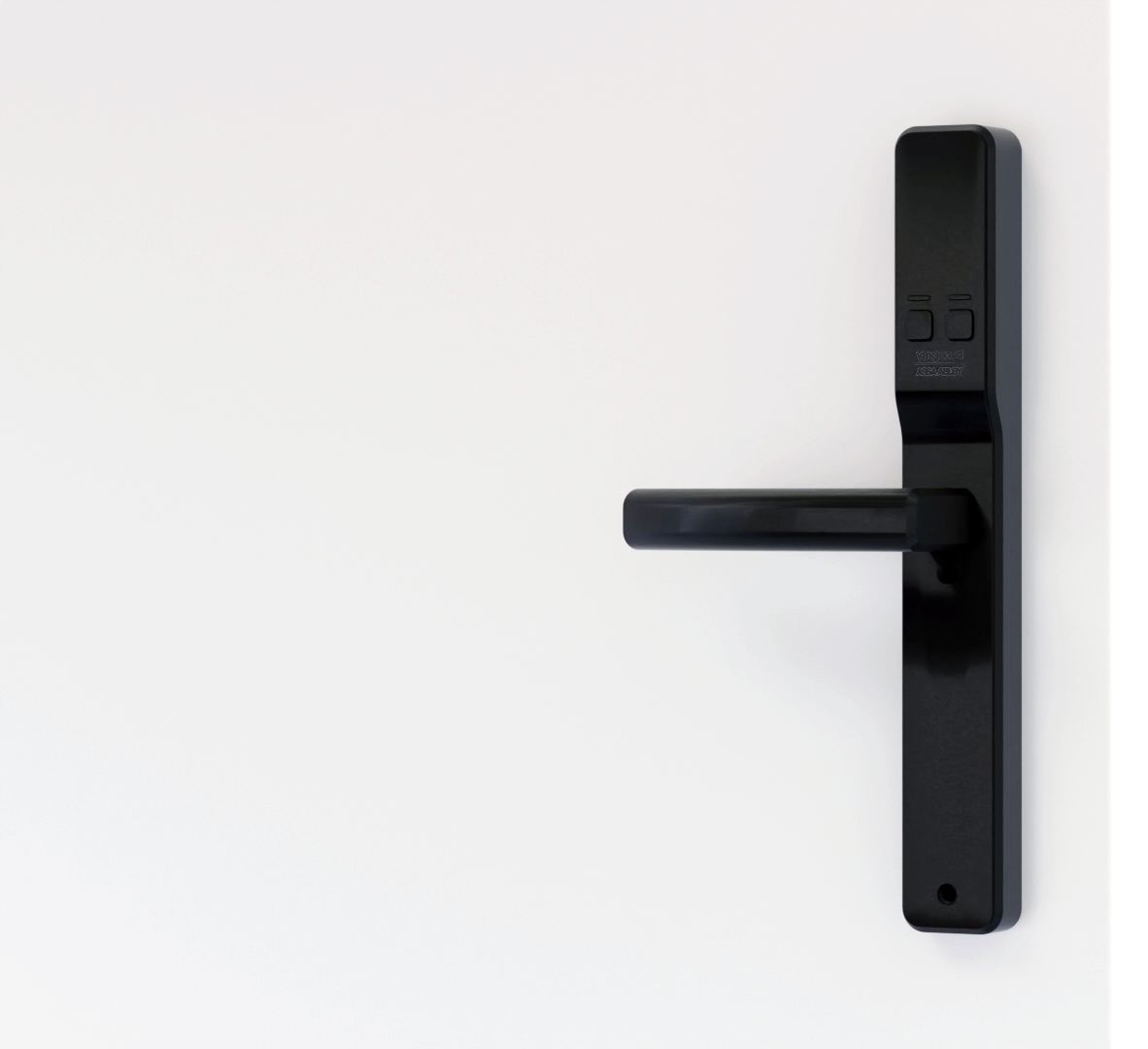

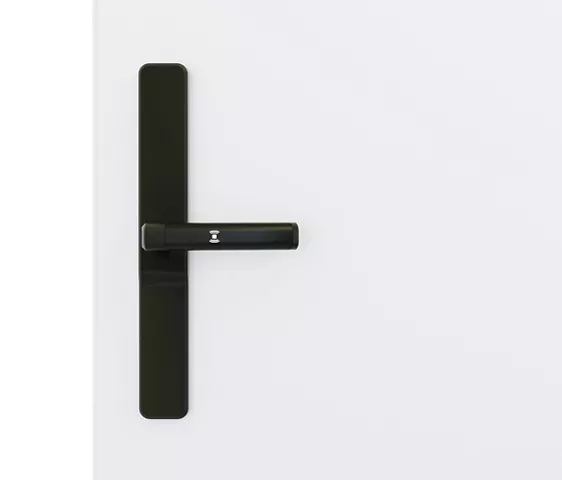

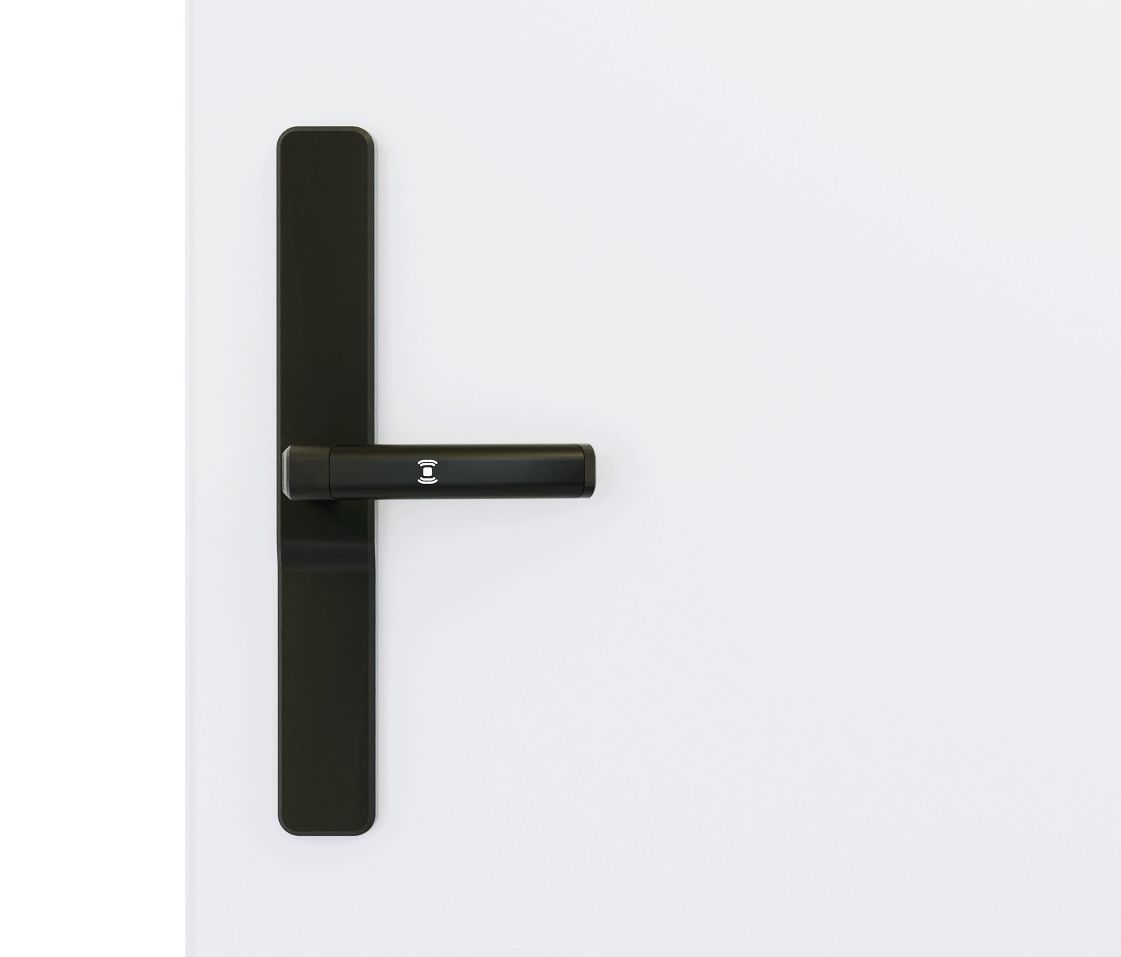

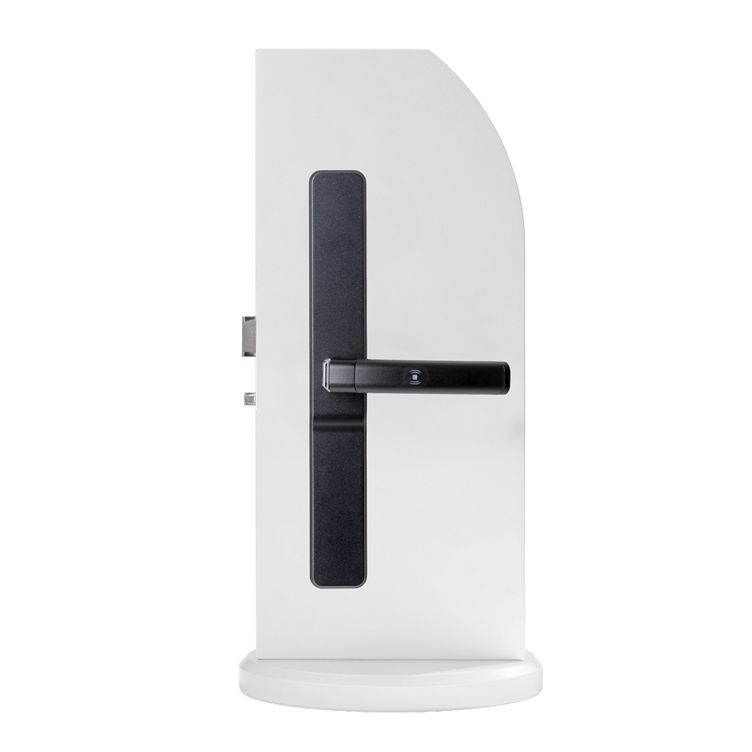

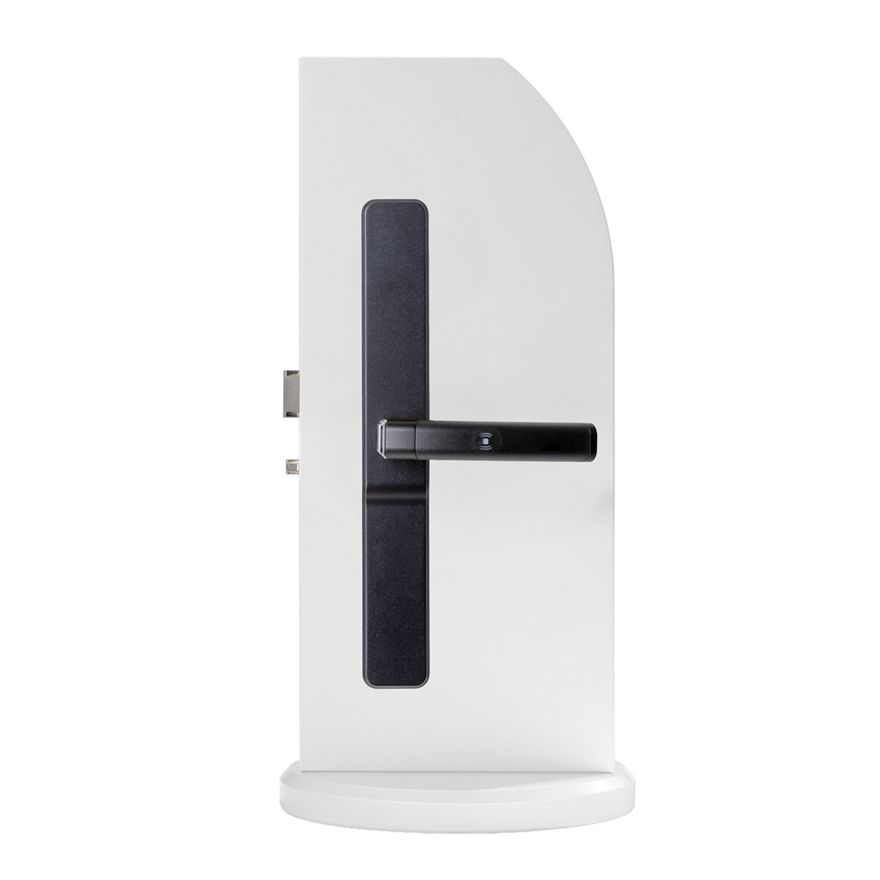

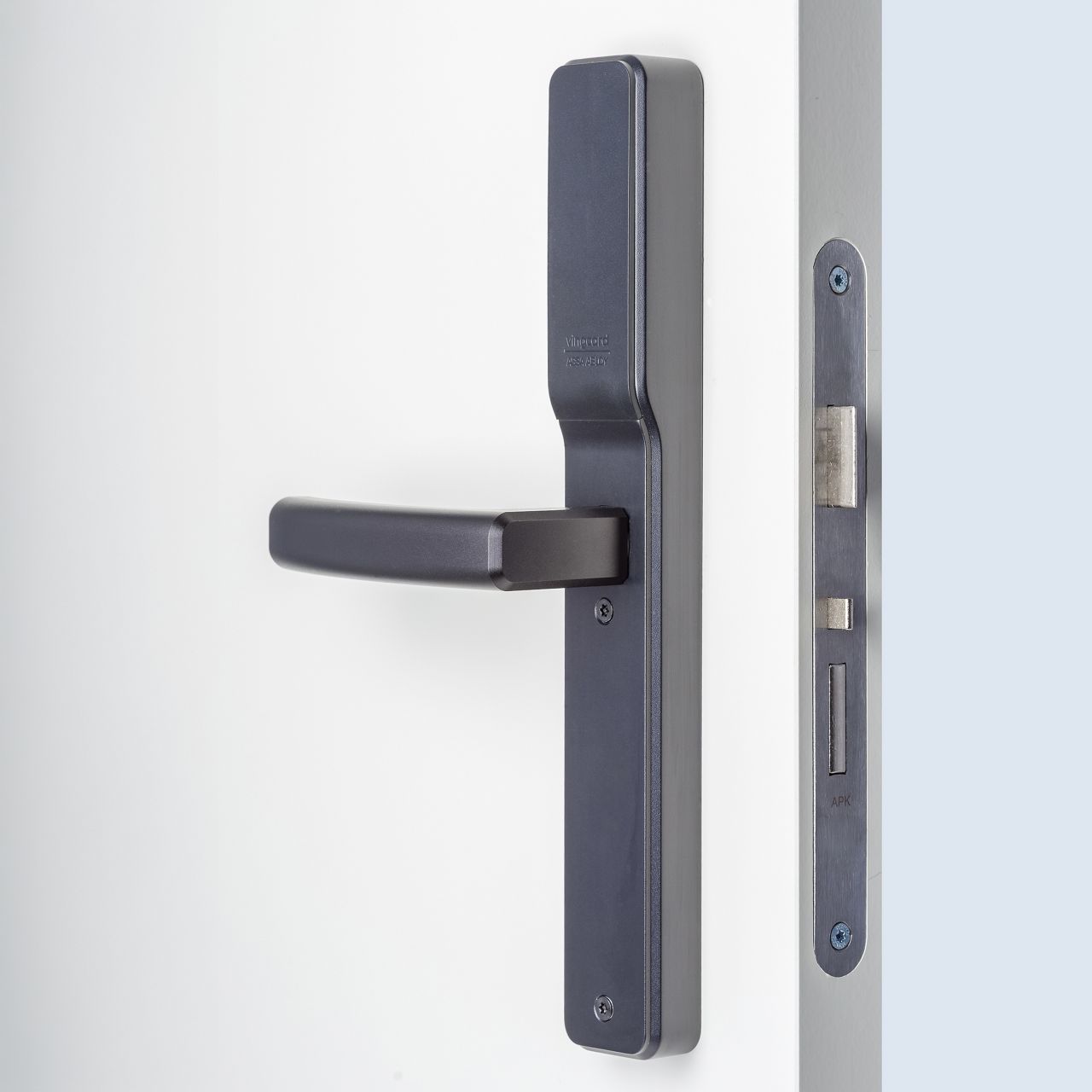

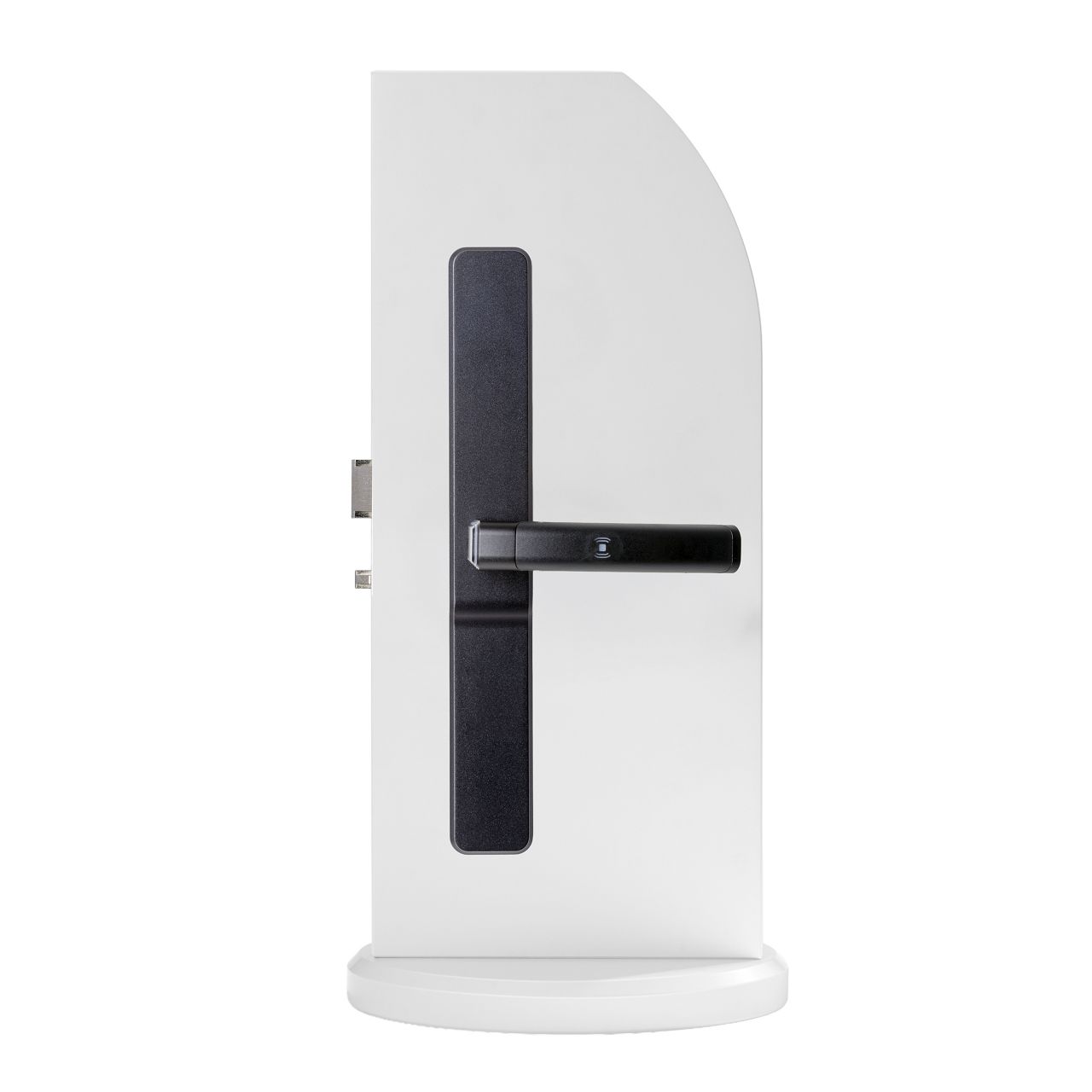

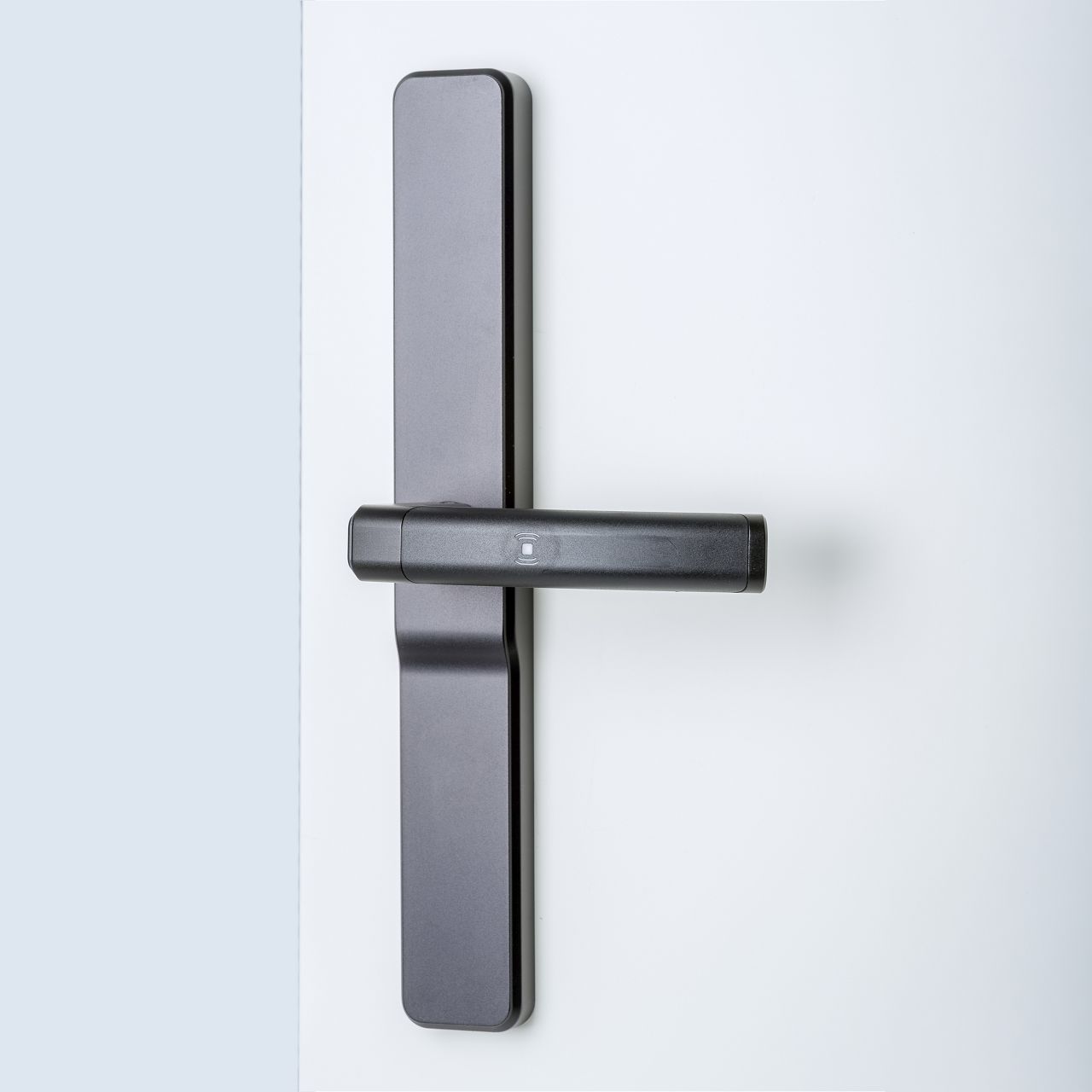

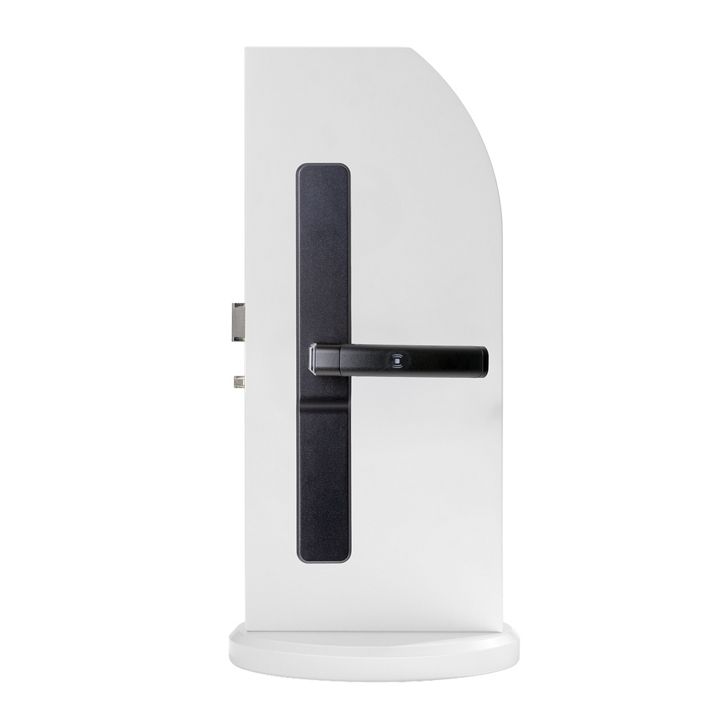

Vingcard Novel DIN

Vingcard Novel DIN is a sleek narrow-profile escutcheon set designed to fit DIN lock cases commonly found across Europe. Ideal for both new installations and retrofit projects on guest room or back-of house doors with low backsets.

Built on Vingcard’s next-generation electronics platform, Novel DIN delivers robust performance indoors and out. With enhanced processing power, advanced security, built-in BLE for mobile keys and Zigbee radio for online features, Novel DIN combines strength, style, and smart technology in one.

    • Supported card types: MIFARE Desfire EV2 and EV3, Mifare Plus EV2, Mifare Ultralight AES, Mifare Ultralight EV1
    • Supports Mobile Access: Bluetooth Low Energy (BLE) and keys stored in mobile wallets (NFC)
    • Compatible with Vostio systems
    • Online Connectivity: Zigbee radio built into reader unit
    • Certifications: European RED Directive European RoHS Directive
    • Aesthetically appealing anodized finishes available

    1 of 3

    Features

    Power

    4.5 V DC (3 x AA batteries)

    Material

    Aluminium and steel

    Handles

    Standard Novel and EN 179 handle

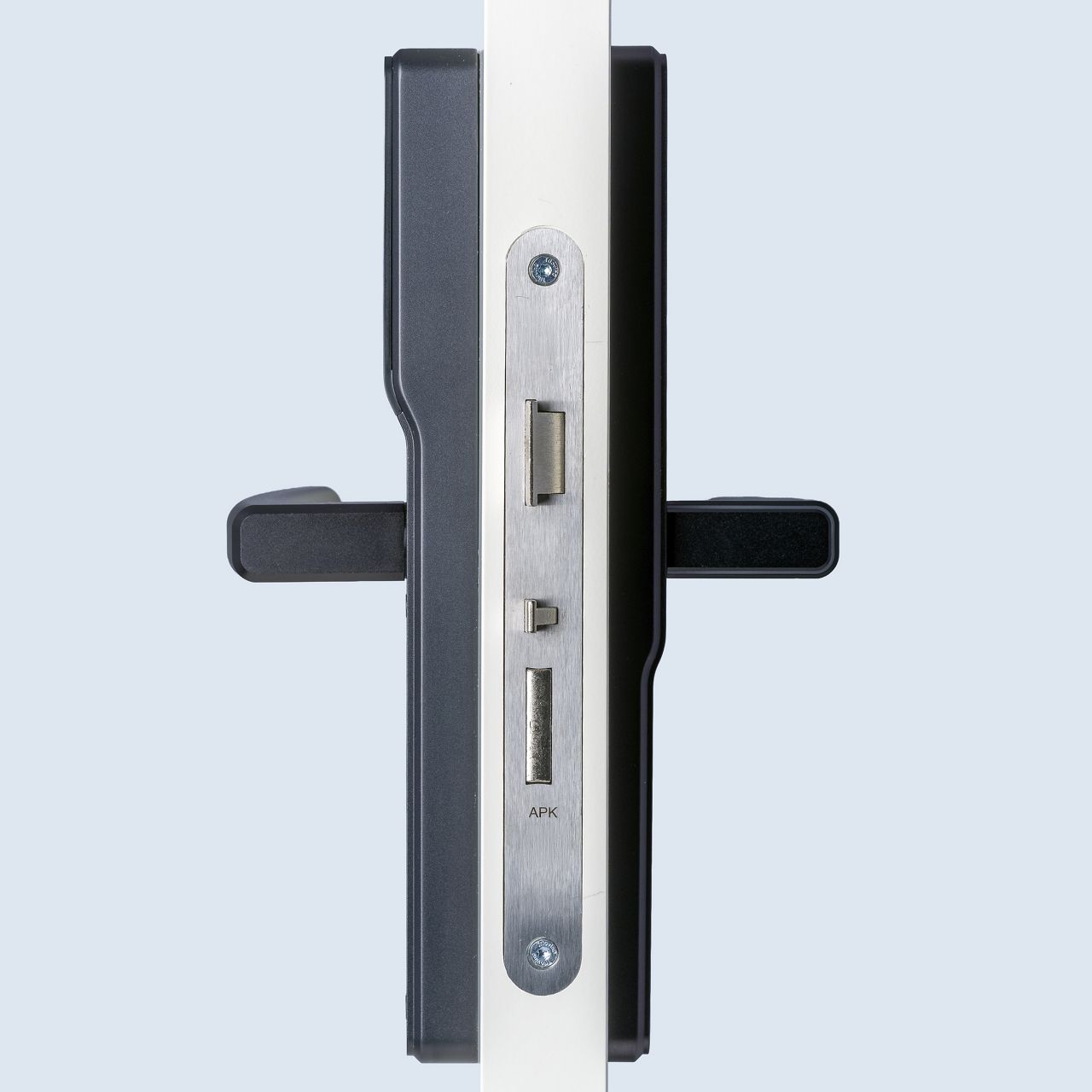

    Lock cases

    Supports most DIN lock cases

    Metal finishes

    		 Anodized aluminum finishes in: Natural, Gold, Black, Brown, Rose Gold

    Mechanical cylinder

    		 Optional EURO cylinder hole available for inside and outside escutcheons

    Audit trail

    3000 events stored in lock, unlimited online

    Programming interface

    USB-C

    User interface

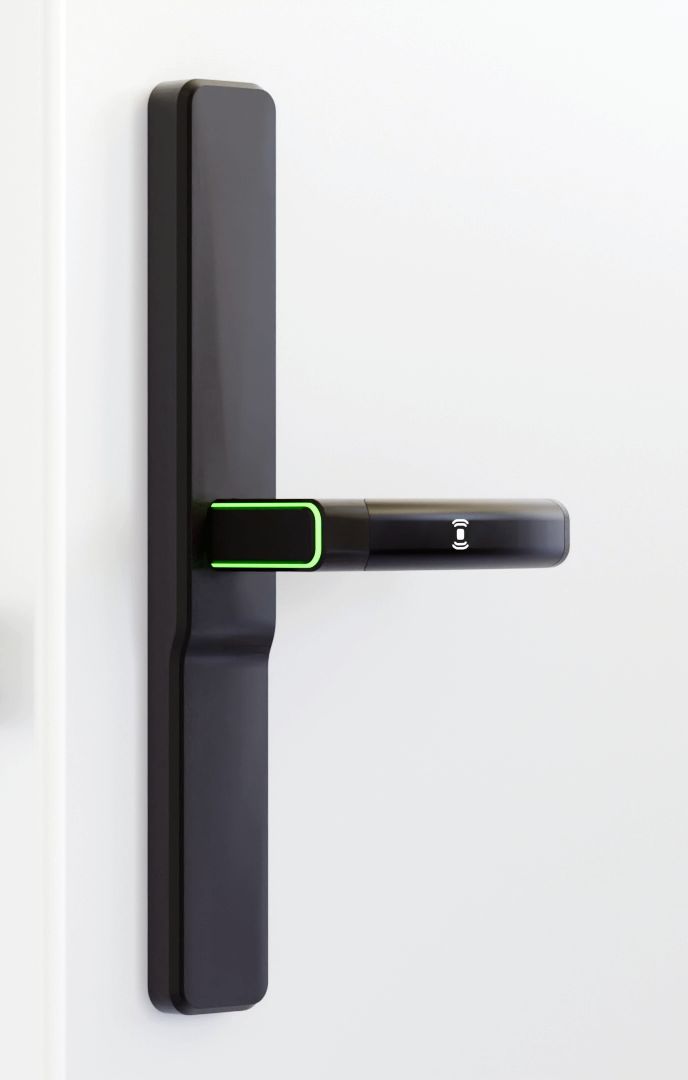

    RGB LED (red, green, yellow, blue) and acoustic beeper
    System software compatibility

    Vostio

    Privacy

    Available with or without privacy buttons

    Mobile Access support

    Bluetooth Low Energy (BLE) and keys stored in mobile wallets (NFC)

    Door thickness

    35 – 95 mm
    C-C (Center to Center) distance

    72 mm and 92 mm

    Backset

    Minimum 30 mm

    Operating temperature

    -30 ° to +70 °C

    Storage temperature

    0 – 70 °C non-condensing environment
    Reader Ingress Protection rating

    IP 56

    Certifications

    European RED Directive, European RoHS Directive

    Novel DIN Product Sheet

    Vingcard Novel Battery Free

    The Vingcard Novel model without batteries utilizes wireless power transfer technology from the side door frame to the lock, eliminating the need for battery replacement. Furthermore, in the event of a power outage.
