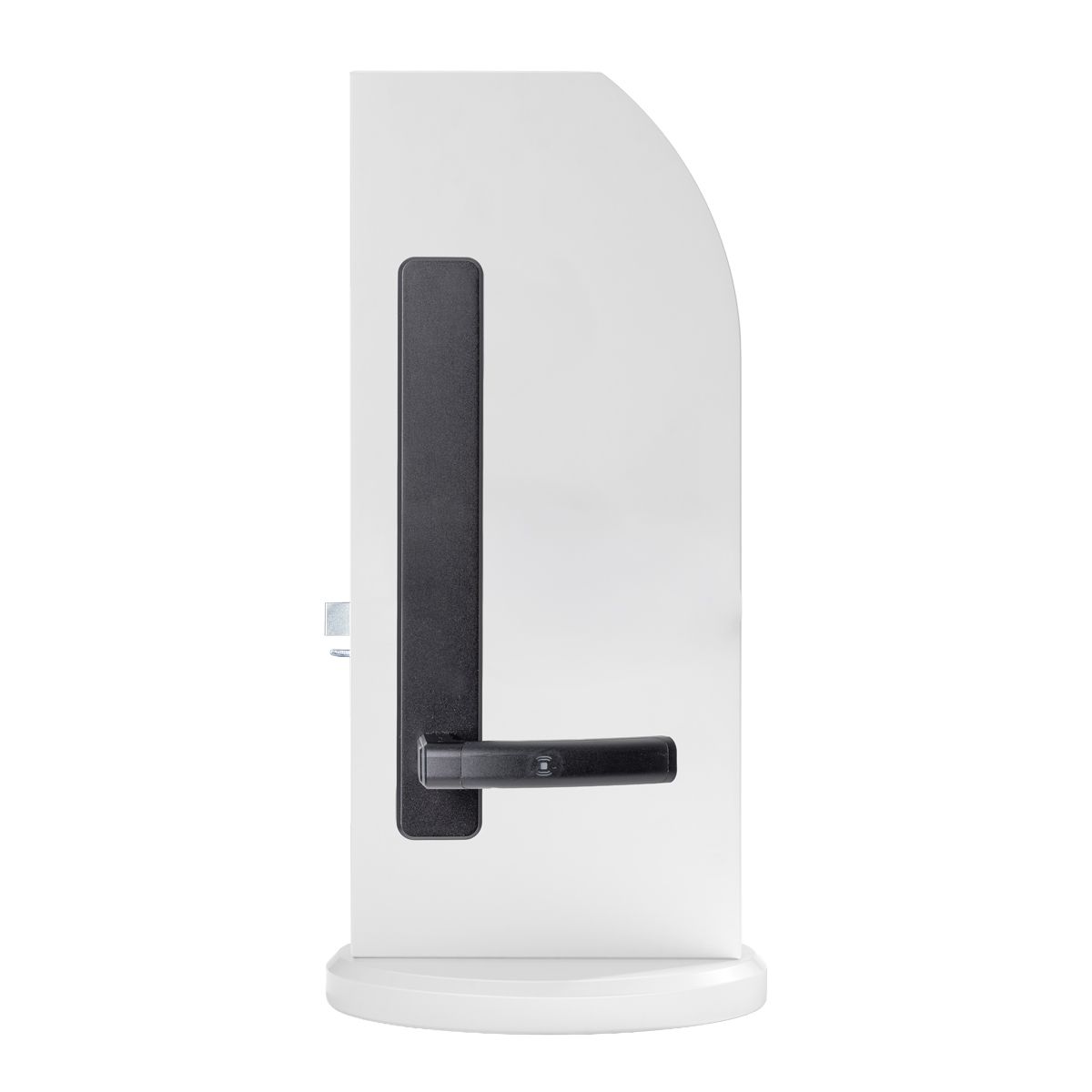

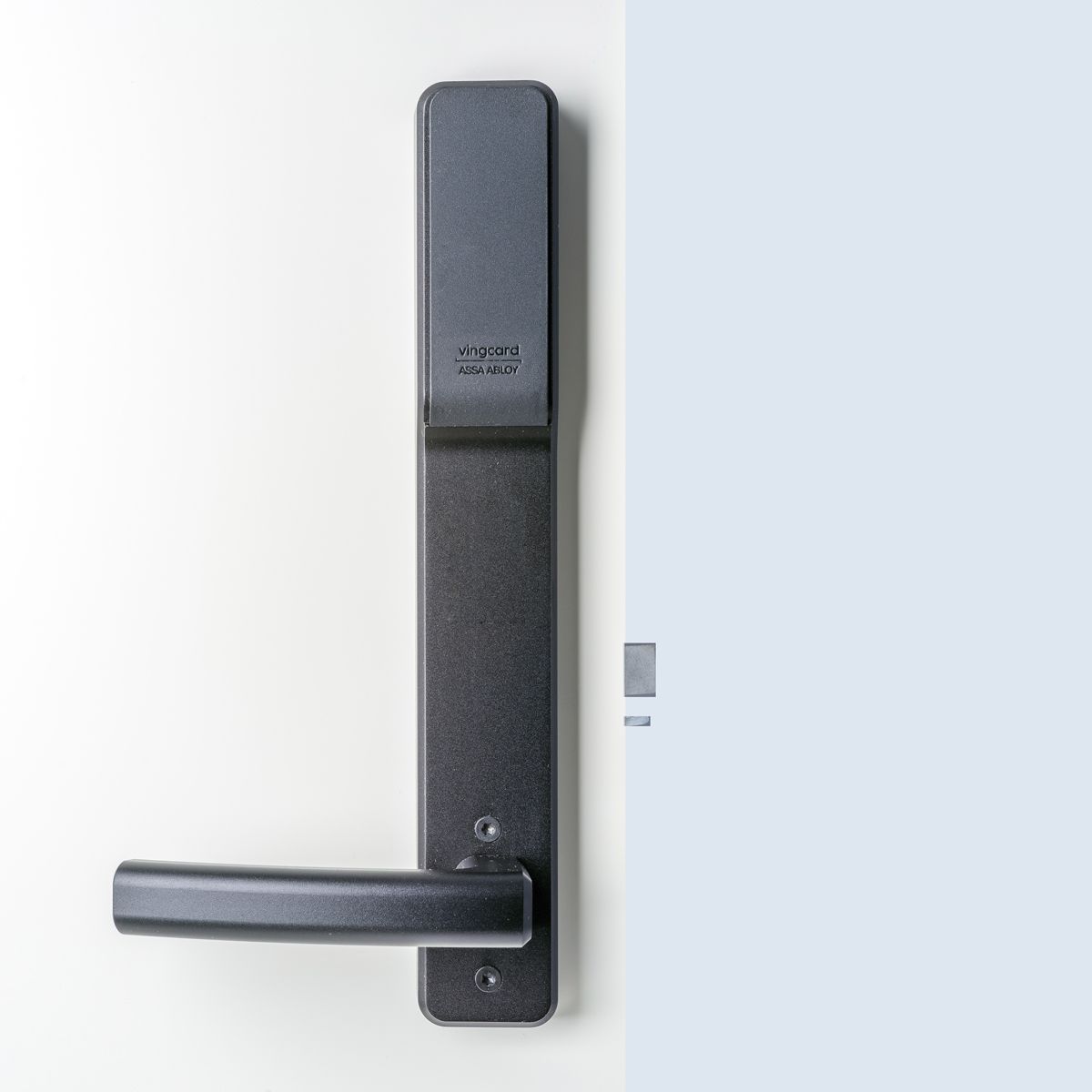

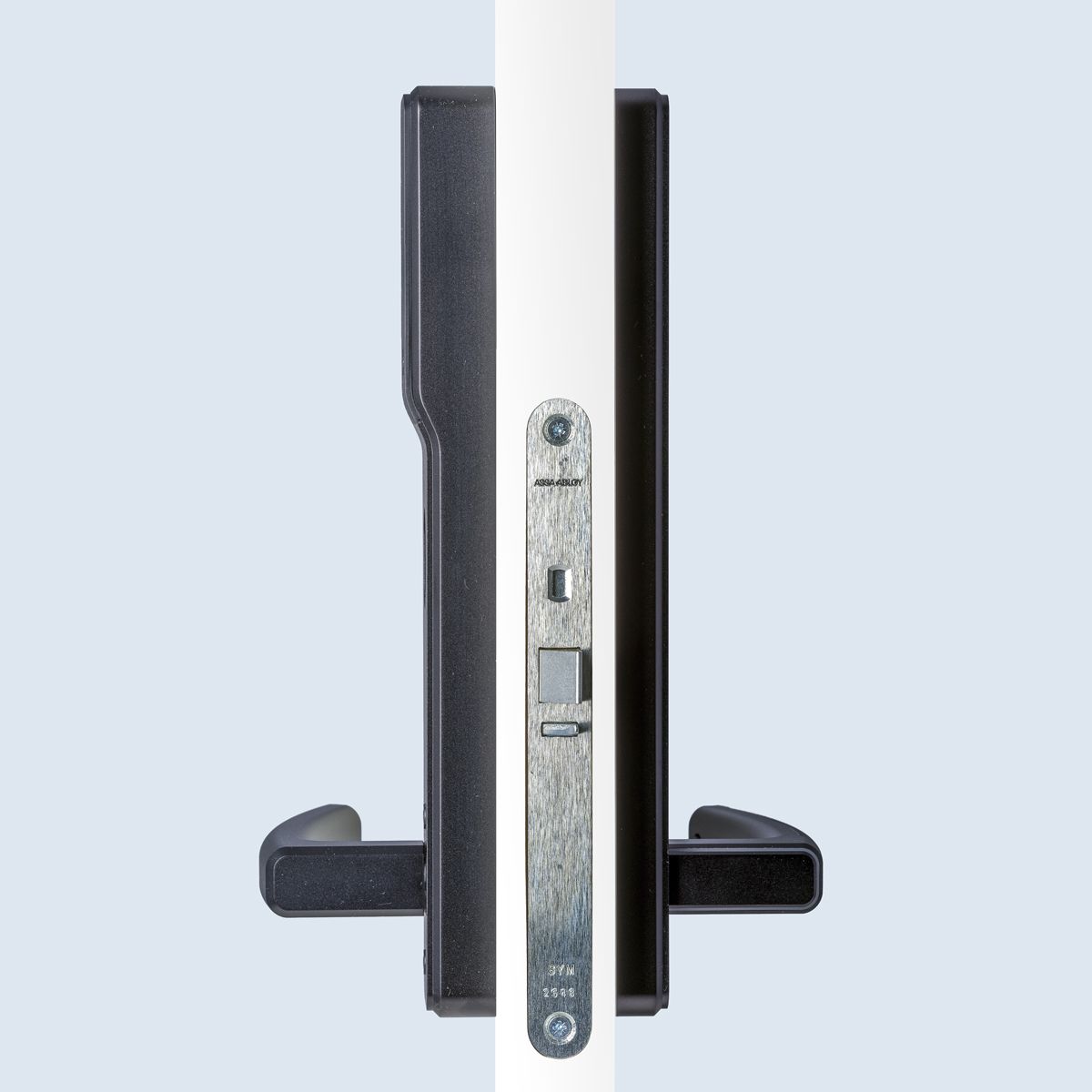

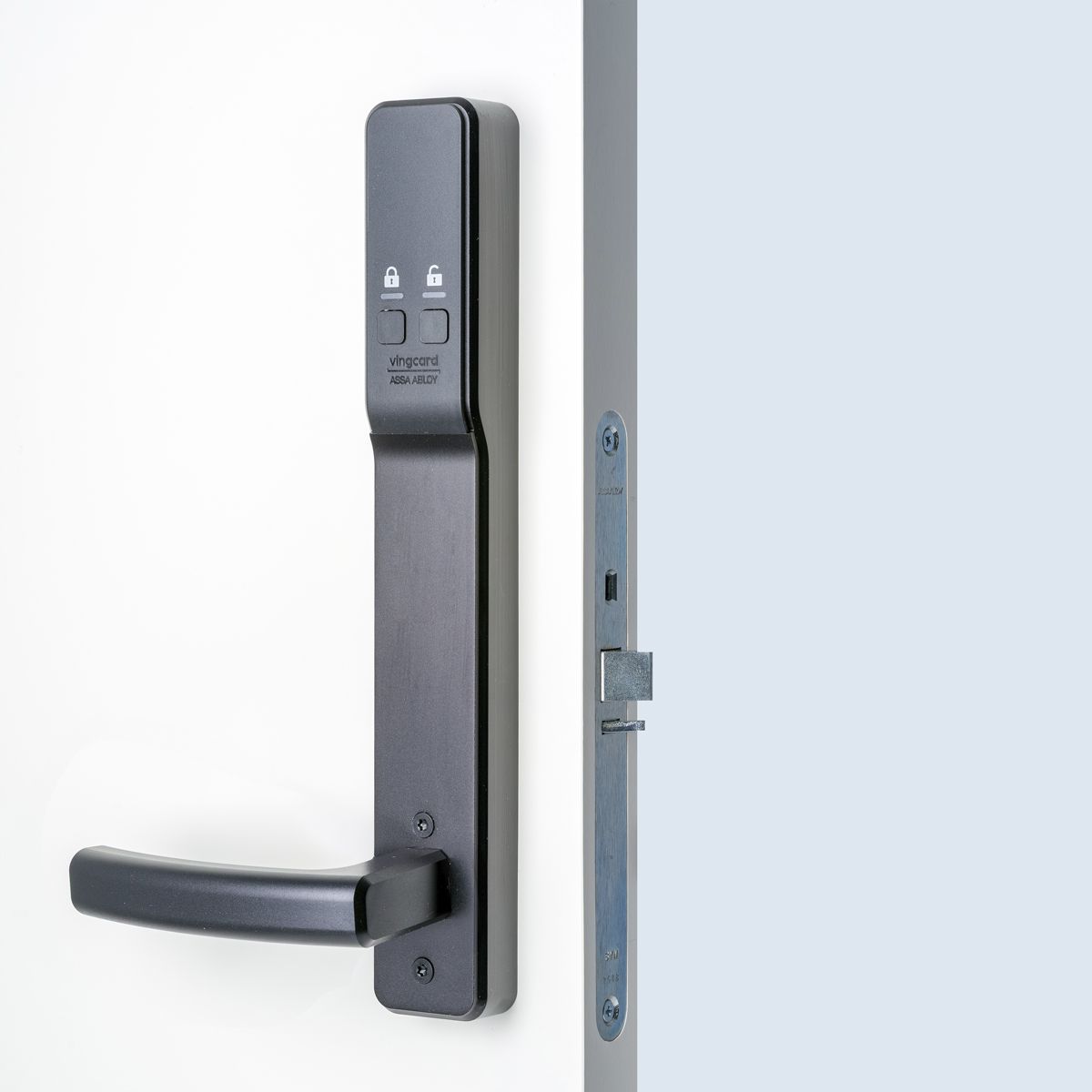

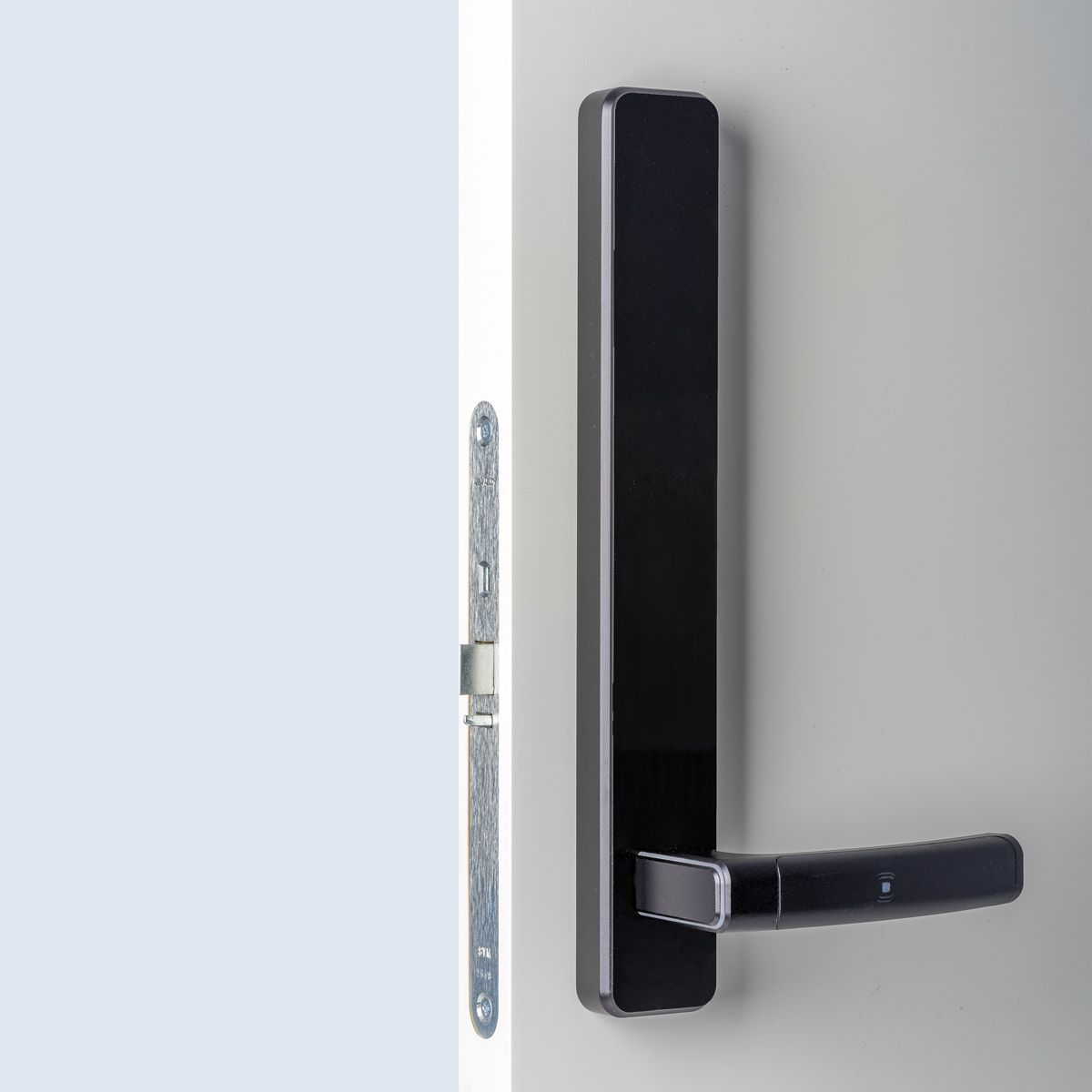

Vingcard Novel SIS

Flexibility, advanced technology and refined design - engineered for the Nordics. Built on Vingcard's latest electronics platform, the Novel SIS pairs enhanced processing power and advanced security with BLE, NFC and Zigbee connectivity to deliver a future-ready solution for SIS-cased doors.

  • Supported card types: MIFARE Desfire EV2 and EV3, Mifare Plus EV2, Mifare Ultralight AES, Mifare Ultralight EV1
  • Supports Mobile Access: Bluetooth Low Energy (BLE) and keys stored in mobile wallets (NFC)
  • Compatible with Vostio systems
  • Online Connectivity: Zigbee radio built into reader unit
  • Certifications: European RED Directive, European
  • RoHS Directive
  • Aesthetically appealing anodized finishes available

  • No description

    RFID

  • No description

    NFC

  • No description

    BLE

1 of 5

Vingcard Novel SIS Features

Power

4.5 V DC (3 x AA batteries)

Material

Aluminium and steel

Handles

Standard Novel and EN 179 handle

Lock cases

Supports most SIS lock cases

Metal finishes

 Anodized aluminum finishes in: Natural, Gold, Black, Brown, Rose Gold

Mechanical cylinder

 Optional oval cylinder hole available for inside and outside escutcheons

Audit trail

3000 events stored in lock, unlimited online

Programming interface

USB-C

User interface

RGB LED (red, green, yellow, blue) and acoustic beeper
System software compatibility

Vostio Access Management

Privacy

Available with or without privacy buttons

Mobile Access support

Bluetooth Low Energy (BLE) and keys stored in mobile wallets (NFC)

Door thickness

35 – 95 mm
C-C (Center to Center) distance

72 mm and 92 mm

Backset

Minimum 30 mm

Operating temperature

-30 ° to +70 °C

Storage temperature

0 – 70 °C non-condensing environment
Reader Ingress Protection rating

IP 56

Certifications

European RED Directive, European RoHS Directive
