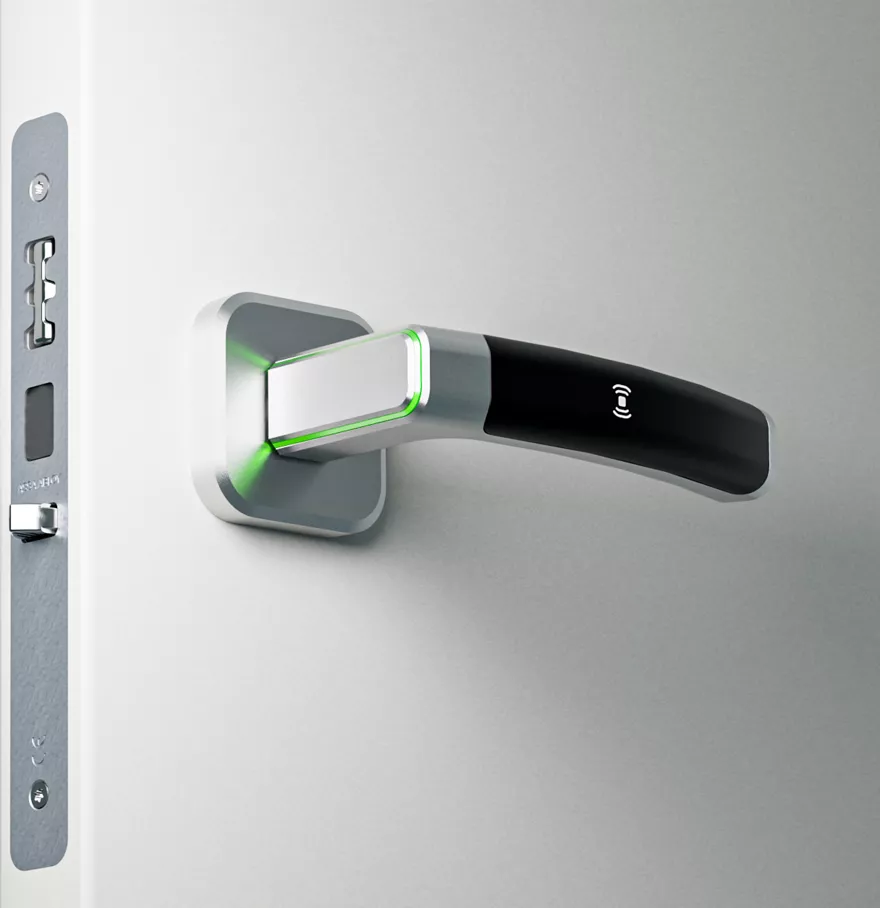

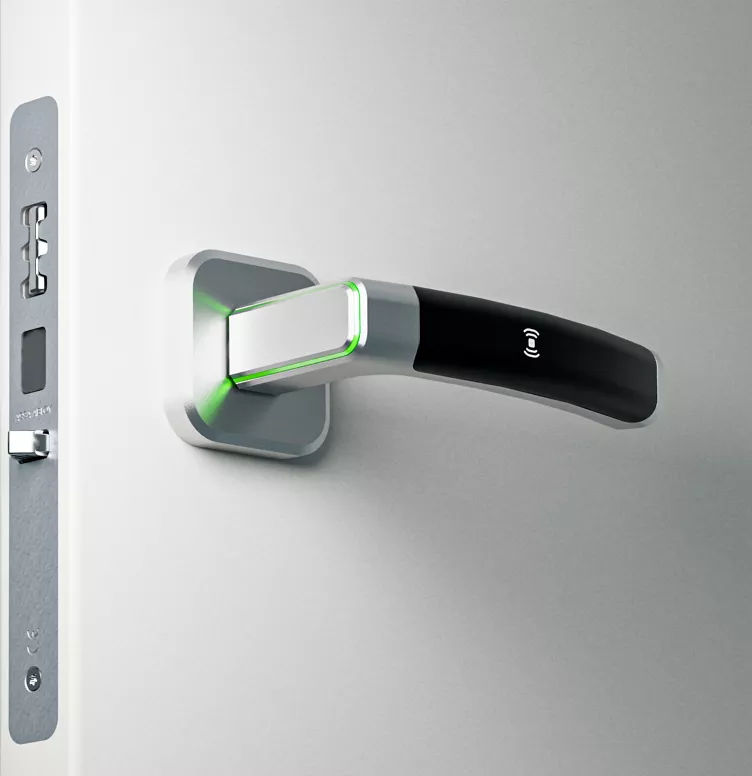

Novel Mortise
With sustainable manufacturing materials, reduced weight and packaging volume, plus an optional charger for battery-free operation, Vingcard Novel takes its responsibility of protecting the environment seriously.
- Supports the latest RFID technology
- Supports Mobile Access
- UL 10C 20 min Fire test passed
- European Fire Certified For 30 and 60 minutes
- ANSI BHMA certified
- EN certified
- ADA compliant (users with physical disabilities)
- Aesthetically appealing anodized finishes available
- Designed for both indoor and outdoor use in all weather conditions
- Optional high security mechanical override cylinder
- Battery-free option available - no battery change needed
- Compatible with Vostio Access Management
Features
| Lockcase | ANSI/EURO/AUS compliant |
| Reader technology | RFID/NFC + BLE |
| RF-online upgradeable | Yes, with firmware upgrade |
| Card types/credentials | Supports Apple Wallet |
| Anti-Cloning technology cards | Yes |
| System software compatibility | Vostio |
| Online compatibility | Wireless (Zigbee) |
| Power supply | 4.5 V DC (3AA batteries) |
| Automatic unlock/lock | Yes |
| Passage mode | Yes, when supported in Vostio |
| Audit trail | Offline: 3000 events Online: unlimited |
| Guest privacy function | Yes |
| Finishes | 5 (Natural, Gold, Black, Brown, Rose Gold Black Polycarbonate) |
| Handles | 3 Standard |
| Fire rating |
|
| Mobile Access compatible | Yes |
Novel Mortise Product Sheet
Vingcard Novel Battery Free
The Vingcard Novel model without batteries utilizes wireless power transfer technology from the side door frame to the lock, eliminating the need for battery replacement. Furthermore, in the event of a power outage.
